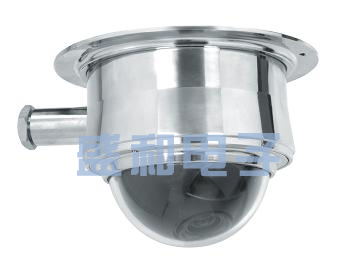

SQF600 Ex Fix Dome Camera

Product Model：	SQF600
Product name:	Ex Fix Dome Camera
Ex Mark:	ExdⅡCT6 / DIP A20 TA,T6
IP Level:	IP68

Description

SQF600 Explosion-proof Dome Camera is designed to protect camera against explosive atmosphere relating to gas group IIC (typical gas vapours: hydrogen, acetylene, ethene, coke-oven gas and methyl ether etc.) as well as flammable dust. The stainless steel dome housing with aerospace material could resist 1.5KG impact in compliance with highest protection grade IP68, which is ideal for high security and hazardous environment applications; It integrates color CCD sensor and optional lens Computar 2.8-12mm, which can be manually adjusted to monitor other directions. With smart shape, the camera is easy to install into any indoor / outdoor application.

Technical Data

Model		SQF600
Certification Parameter
Manufacturers Standard	IEC60079, IEC21641, GB3836-2000, GB12476.1-2000
Configuration Mode	Integrated Dome Shape
Explosion-proof Mark	ExdⅡCT6 / DIP A20 TA,T6
IP	IP68
Operating Temperature	-45℃～60℃
Humidity	≤95%
Cable Entries	1×G1/2”Explosion-proof cable entry , Dia. of inner hole Φ14
Mechanical Features
Material		304 /316L(stainless steel)
Weight		2.75 Kg
Camera
CCD Sensor		1/3”SONY CCDHITACHIDSP
TV System		NTSC		PAL
Horizontal Frequency		15.734kHz		15.625kHz
Vertical Frequency		59.94Hz		50.00Hz
Pixel		(H)510×(V)592		(H)500×(V)582
Horizontal Resolution		420 TVL		540 TVL
Mini. Illumination		0.005Lux of F1.2	0.00045Lux of F1.2	0.005Lux of F1.2	0.00045Lux of F1.2
Scan		2:1 Interlace Scan
Sync. System		Internal
Manual Zoom		2.8~12mm
White Balance		Auto / Manual
Iris		Auto Iris; Control:Video Drive/ Electronic Shutter /DC Drive
S/N Ratio		Min. 50 dB / Max.60 dB (AGC shut)
Video Output Level		Combined & Separated image signal output, 1.0 Vp-p (75Ω)
AGC		Max. +18 dB
Electronic Shutter		1/60 (1/50)~1/120000 sec
Power		12V±1V DC, 90mA
Power Supply
Voltage		12V DC / 220V AC
Current		2A/ 250mA
