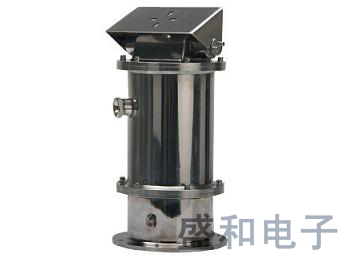

SHY201 Ex PTZ

Model:     SHY201

Name:     Ex PTZ

Ex Mark:  ExdⅡCT6/DIP A20 TA,T6

IP Level:  IP68





Description:


SHY201 Explosion-proof Pan/tilt is designed for use in explosive atmosphere such as gas group ⅡC (typical gas vapours: hydrogen, acetylene, ethene, coke-oven gas and methyl ether etc.) as well as flammable dust.

It is designed according to National standard and is built to IP68 protection level requirement.

The pan/tilt has a huge load capacity, smooth rotation, smaller noise and high reliability.

Its built-in decoder controls its rotation, camera lens and wiper.

With highest compound explosion-proof certification, it has proper configuration, light weight as well as easy installation and maintenance, providing best safety control.

Model

SHY201

Certification Parameter

Manufacturers Standard

GB3836-2000, GB12476.1-2000

Configuration Mode

Explosion-proof spigot joints

Explosion-proof Mark

ExdCT6 / DIP A20 TA,T6

IP

IP68

Operating Temperature

-25°60 note

Relative Humidity

95% (+25℃)

Cable Entries

2×G1/2”Explosion-proof cable entries , Dia. of inner hole Φ12

Mechanical Features

Material

Carbon steel / Stainless steel (304/316L)

Pan/Tilt Range

360° / ±60°

Pan/Tilt Rotate Speed

10 °/s

Pan/Tilt Driving Torque

20 N. m / 30 N. m

Gear Clearance

±0.3°

Electric Motor

The permanent magnetism DC motor of high torque matches the planetary gear reducer of high precision

Transmission Structure

All-gear structure

Outside Dimensions

210×165×345

Weight

11 Kg

Built-in Decoder With ZOOM Control

Communication Interface

RS-485 semiduplex

Communication Protocol

PELCO-D (other protocols replaced according to consumer’s demands)

Baud Rate

1200 / 2400 / 4800 / 9600 / 19200

Power Supply

Voltage

220V AC

Current

0.5 A

Others

Optional

Heater
